Quick Overview

track frameset

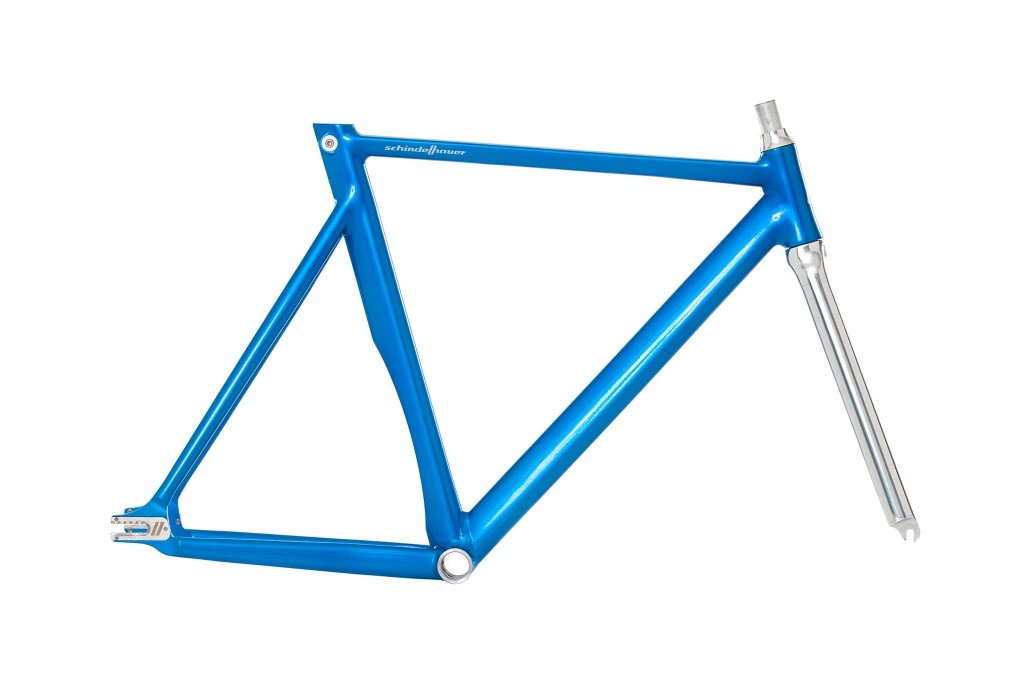

Hektor - frame set/h1> Velodrome, Criterium, or Road - the Hektor frameset is the core around which to build a custom racing machine. Stiff, aggressive, and craving speed, yet supple and dynamic, the Hektor features LoPro geometry to deliver an agile, balanced, and comfortable ride for those who bring the challenge on themselves. The sculpted seams are welded from large volume, triple-butted, aero tubes for a highly stiff, tuned frameset, showcasing our years of design and craftsmanship. Comprised of frame, fork, headset, and of course 100% compatible with the Gates Carbon Drive.


Double click on above image to view full picture

Zoom Out
Zoom In

More Views

* Required Fields



frame: aluminum (AL6061-T6), triple butted aero tubing, hori - zontal drop outs with crocodile-belt-tensioning-system and Schindelhauer beltport, integrated seat post clamp, smooth welded

sizes: 50, 53, 56, 59, 62

fork: straight aluminium fork silver high polished / straight carbon fork matt black

headset: 11/8 Tange Seiki integrated, silver polished / matt black

transmission: For Gates CarbonDrive™ CDX CenterTrack only

bottom bracket: for 68mm BSA standard

seat post: for 27,2mm seatpost

wheels: O.L.D. 120mm

brakes: brake assembling possible, (frame and fork are pre-drilled)

weight: 1,670 g (frame), 690 g (fork)
